Linked to both industry & educational

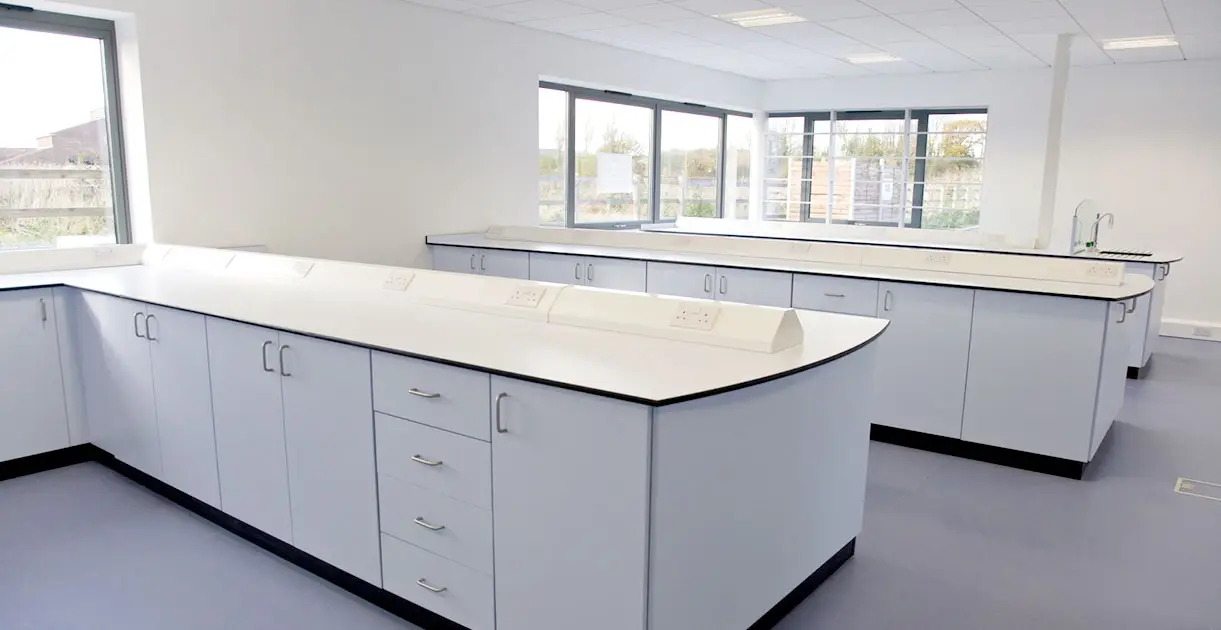

Fixed Pedestal
The Pedestal system is a fixed storage unit range which provides the robust support for the above worktop. This furniture system allows for mechanical and electrical services (gas, electric & water) to run behind the units, out of site, but accessible through the removable back of the unit. This system is widely used in the laboratory industry and educational sector.

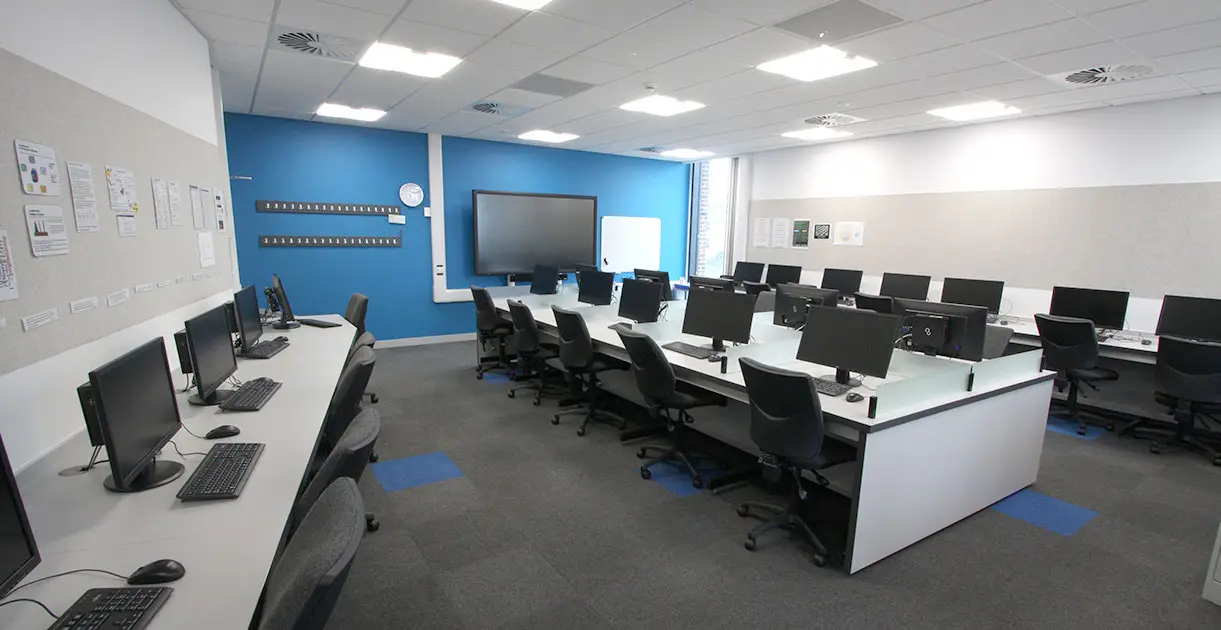

‘C’ Frame Systems
The ‘C’ frame system provides worktop support independent of any under bench unit. It combines heavy duty weight loading with a clean open under unobstructed workstation. The ‘C’ frame legs are secured together with three satin anodised aluminium rails. The rear top and bottom rails are of a custom extruded profile channel in order to take a 15mm thick lift out access panel. This framework allows for mobile and suspended units.

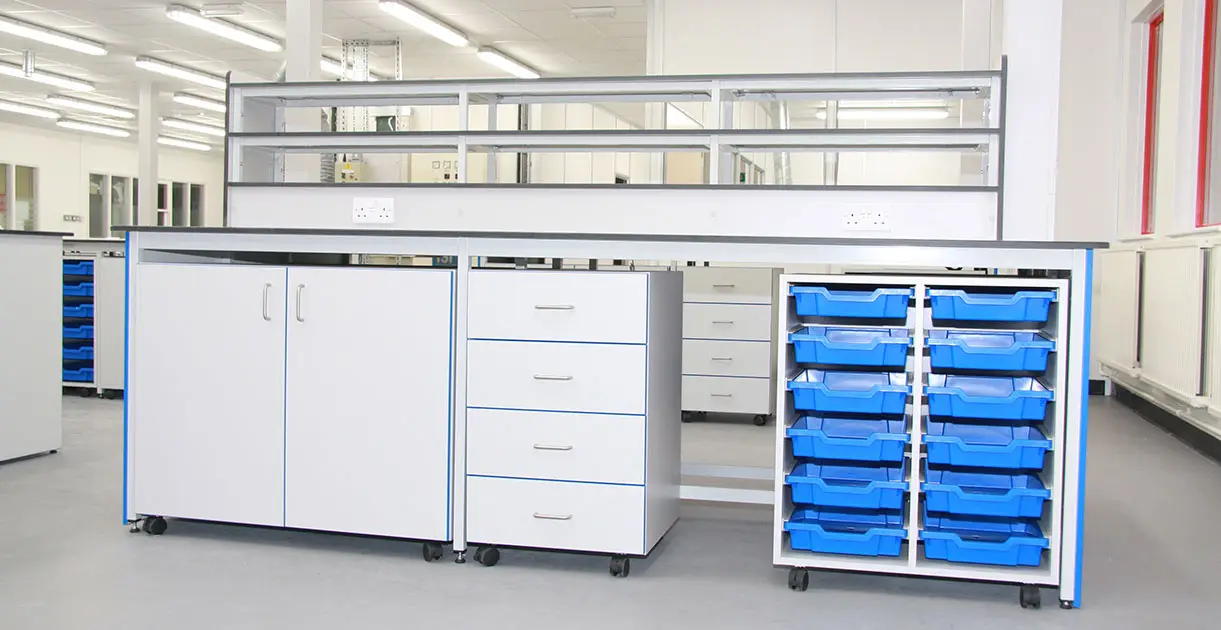

‘H’ Frame System
The ‘H’ frame system comprises a series of powder coated 1.6mm mild steel support legs, connected with 1.6mm mild steel span rails. The set of 3 span rails are fitted top front & rear and bottom back to add extra rigidity for greater weight loading on the work surface. This framework allows for mobile and suspended units.

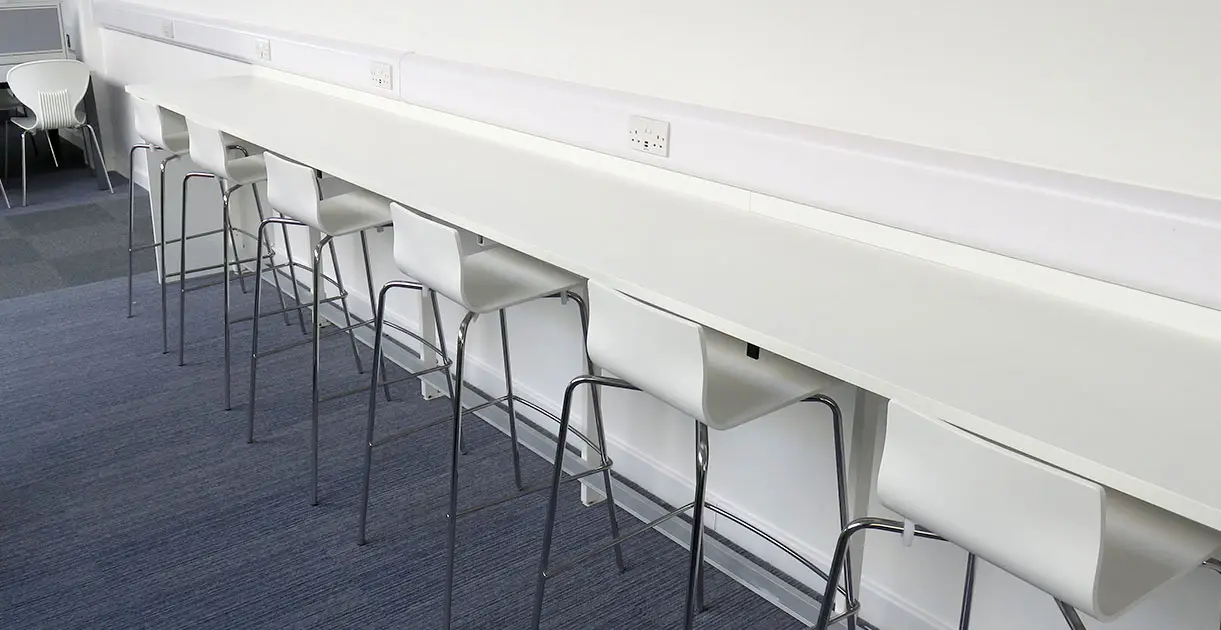

‘T’ (Cantilever) Frame System
The T Frame System comprises a series of powder coated 1.6mm mild steel support legs, fixed and braced to the back wall with the worktop supported by this cantilever system. Ideal for ICT applications.

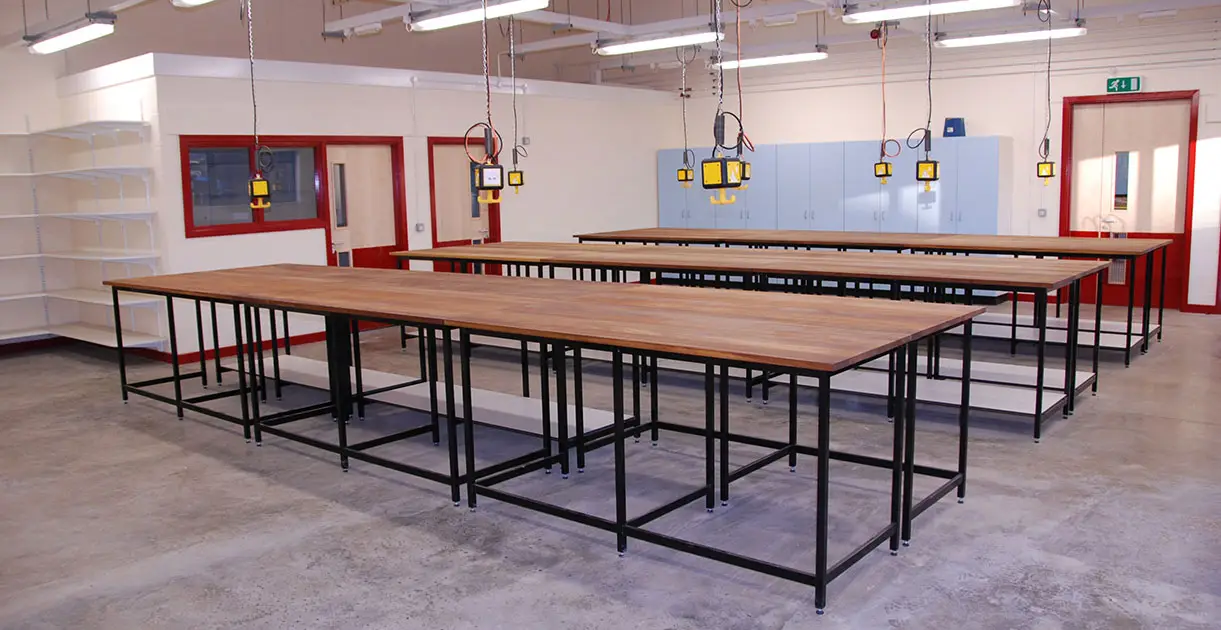

Modular
Our mobile/ freestanding bench system offers ultimate convenience as the end user is able to configure their lab to suit their own requirements. We largely see this system adopted in the pharmaceutical industry, where the needs of the laboratory do not change that often. Meeting with our design team, we will be able to tailor the lab space to the lab user’s needs. Serviced modules are available with pre-plumbed or pre-wired wet and dry service outlets. Constructed from powder coated 1.6mm mild steel tube.

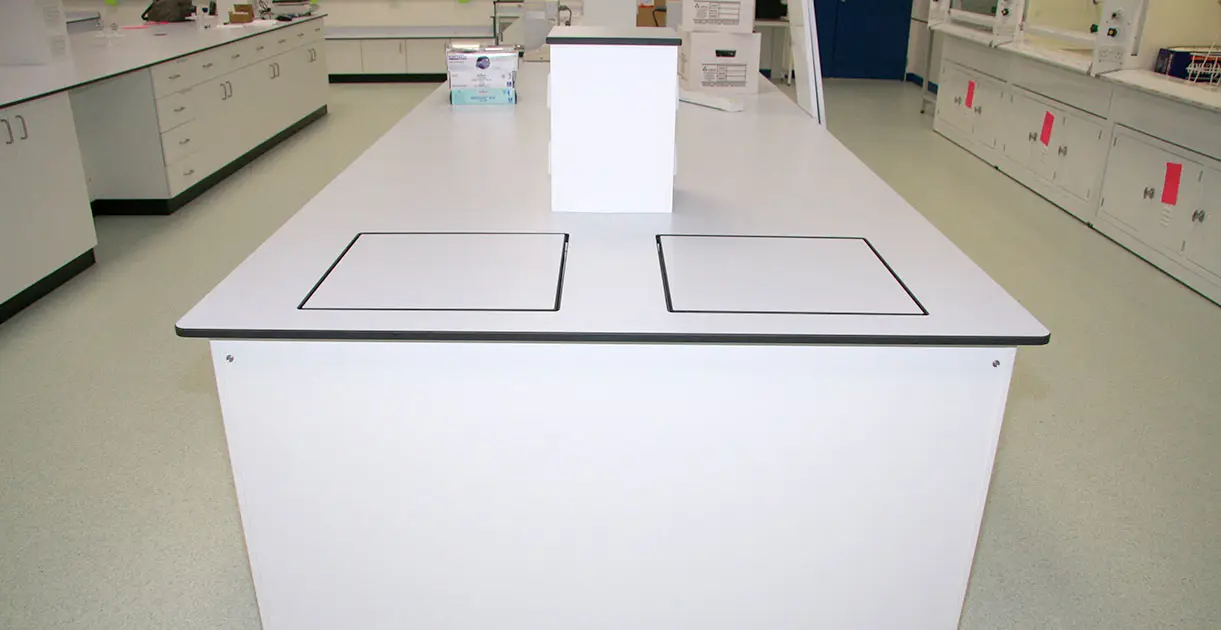

Balance Bench
Our balance bench consists of a heavy duty powder coated mild steel support frame, with the work surface supported on the steel frame using anti-vibration mounts. Balance benches are provided either freestanding or as part of an integral bench system. Isolation from the rest of the bench is provided through a cut out to this bench with room for vibration.

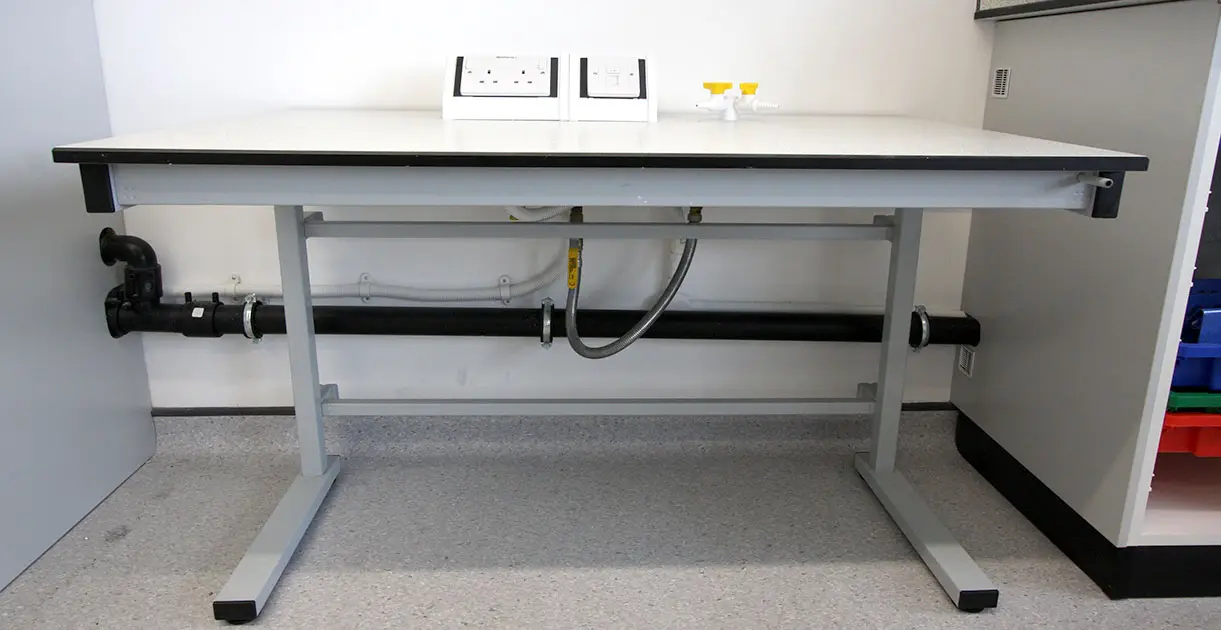

Height Adjustable
Our height adjustable benches provide 300mm of open height adjustment ranging from 640mm high to 940 high. Each frame is powder coated to an agreed RAL colour with choice of worktop. We offer both basic height adjustable frames and frames suitable for services such as sink or hob.
